Carbonatite metasomatism overprinted by silicate melt metasomatism in the mantle beneath the West Eifel volcanic field

The texture and mineral compositions of mantle xenoliths from the West Eifel volcanic field (WEVF) reveal three distinct mantle events. The first, identified in LREE-depleted and isotopically depleted anhydrous (type Ib) xenoliths, resulted from partial melting of fertile mantle around 2 Ga. The second event, marked by the formation of Ti-poor, LREE-rich clinopyroxene, amphibole, and phlogopite in hydrous type Ia xenoliths, is attributed to mantle metasomatism. The third event, evidenced by LREE-depleted and MREE-enriched clinopyroxene in olivine–clinopyroxenite veins and in more evolved hornblendite and phlogopite–clinopyroxenite veins that occur in type Ia xenoliths, is associated with the passage of primitive alkaline mafic magma related to the Quaternary host magmatism.

Previous studies of mantle xenoliths have proposed that metasomatic agents could include both silicate and carbonatite melts. The trace element signatures in the studied xenoliths, particularly the Ti $/$ Eu and La_N $/$ Yb_N ratios and the large negative Zr and Hf anomalies, support the involvement of carbonatite melts in the formation of Ti-poor, LREE-enriched clinopyroxene and amphibole in type Ia xenoliths and clinopyroxene–amphibole–phlogopite veins in the earlier metasomatic event. The subsequent silicate melt metasomatism overprinted this carbonatite metasomatism, producing Ti-rich clinopyroxene and amphibole.

Trace element data and diffusion modelling suggest that the silicate metasomatism was not uniformly distributed, resulting in compositional heterogeneity in individual grains and xenoliths. Diffusion-controlled mixing between the earlier carbonatite-associated clinopyroxene and the silicate melt equilibrium phase is proposed to explain this heterogeneity. The complex interplay of metasomatic agents resulted in highly heterogeneous mantle compositions on a grain-to-grain and xenolith-to-xenolith scale.

1 Introduction

Partial melting of primitive mantle lherzolite and the attendant depletion of clinopyroxene result in partitioning of incompatible trace elements into the melt phase, leaving a refractory harzburgite–dunite residue (Bernstein et al., 2007). Many lithospheric mantle xenolith samples found worldwide show trace element and isotopic evidence of such depletion (Witt-Eickschen and Kramm, 1998; Neumann et al., 2002; Rivalenti et al., 2004). However, in some cases these isotopically depleted mantle xenoliths also contain incompatible element-enriched phases, such as clinopyroxene, amphibole, and phlogopite, which must have been added to the mantle after the melting event. Addition of these phases occurs via mantle metasomatism. A common mechanism involved in metasomatic mineral growth, in particular of clinopyroxene, is reaction of orthopyroxene with an orthopyroxene-undersaturated melt/fluid, resulting in formation of secondary olivine and clinopyroxene. This causes transformation of lherzolite/harzburgite to wehrlite (e.g., Ionov et al., 1993; Shaw, 1999; Ionov et al., 2005; Shaw et al., 2018; Wang et al., 2018; Hauzenberger et al., 2024).

Experimental studies and thermodynamic modelling indicate that wehrlite can be formed by peridotite reaction with either (1) silica-undersaturated silicate melt (Tursack and Liang, 2012; Ma and Shaw, 2022) or (2) carbonatitic melt (Klemme et al., 1995; Gervasoni et al., 2017). The trace element characteristics of wehrlite and its constituent minerals, particularly clinopyroxene, are strongly dependent on the nature of the reacting melt (Rudnick et al., 1993; Coltorti et al., 1999), as there is a strong depletion in Hf, Zr, Ti, Ta, and Al and enrichment in LREE in carbonatite melts compared to silica-undersaturated melts (Martin et al., 2013).

Wehrlitic mantle xenoliths are common in the lavas of the Quaternary West Eifel volcanic field (Fig. 1). A large proportion of these have been related to metasomatism of lherzolite and harzburgite by silicate melts related to the Quaternary volcanism; however, there is a suite of wehrlites and other peridotite lithologies for which the nature of the metasomatic agent has not yet been deciphered (Shaw et al., 2005, 2018; Ma and Shaw, 2022). In this study, we examine xenoliths from two previously unstudied locations, and we provide additional analyses of clinopyroxene from previously documented locations, together with a compilation of literature data. Our goals are the following:

1. Examine the distribution and types of metasomatism in mantle beneath the West Eifel.

2. Determine the nature of the agents of metasomatism responsible for the two metasomatic events.

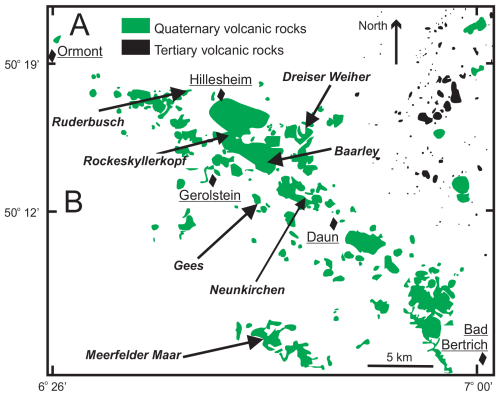

Figure 1 Geology of the West Eifel volcanic field (modified after Büchel, 1994) and location of the xenoliths used in this study.

2 Geology of the West Eifel volcanic field

Quaternary intraplate mafic alkaline volcanism in the WEVF began around 940 ka, and the last eruption occurred at 9588 BP (Mertes and Schmincke, 1983; Zolitschka et al., 1995). The northwest–southeast trending field comprises approximately 240 eruptive centres (Fig. 1) that erupted silica-undersaturated lavas as flows, tuff rings, and scoria cones. Mertes and Schmincke (1985) defined two compositional groups: the dominant suite, termed F-suite lavas, comprises leucitites, nephelinites, and melilite-bearing lavas. The second suite, comprising olivine–nephelinite and basanite (ONB suite), is younger and found mainly in the SE part of the field. Shaw and Woodland (2011) and Mertz et al. (2015) showed that the Eifel lavas were generated by melting of asthenospheric garnet peridotite and were modified by interaction with lithospheric mantle during ascent.

The lithospheric mantle below the Eifel region lies between the Moho at 28 km and the lithosphere–asthenosphere boundary at 41 ± 5 km (Mertz et al., 2015, and references therein). Geophysical studies suggest that there is still magma present in the sub-Eifel mantle (Dahm et al., 2020; Eickhoff et al., 2024) so that the field cannot be considered extinct.

Previous studies of mantle xenoliths have focused on Meerfelder Maar (MFM) and Dreiser Weiher (DW) (Stosch and Seck, 1980; Stosch and Lugmair, 1986; Witt-Eickschen et al., 1993, 1998; Witt-Eickschen and Kramm, 1998; Witt-Eickschen et al., 2003), with several other studies investigating xenoliths from Gees (Lloyd et al., 1991; Zinngrebe and Foley, 1995; Rizzo et al., 2021) and Rockeskyllerkopf (Shaw et al., 2018). These locations are shown in Fig. 1.

3 Samples

Previous studies of mantle xenoliths from the Eifel (Witt-Eickschen et al., 1993, 1998; Witt-Eickschen and Kramm, 1998) have suggested that there is evidence of two metasomatic events in the West Eifel subcontinental lithospheric mantle (SCLM). To examine the similarities and differences between these events and their distribution across the region, we compiled literature data from the GeoRoc database (https://georoc.eu/georoc/new-start.asp, last access: 18 December 2022) using only samples for which both major and trace element data are available (Tables 1 and S1 in the Supplement). Since the trace element data for the Gees and Baarley localities are limited, we selected six additional samples with disseminated clinopyroxene and hydrous phases for analysis. In addition, we analyzed clinopyroxene in samples from two previously unstudied xenolith localities: Neunkirchen and Ruderbusch (Fig. 1, Table 1).

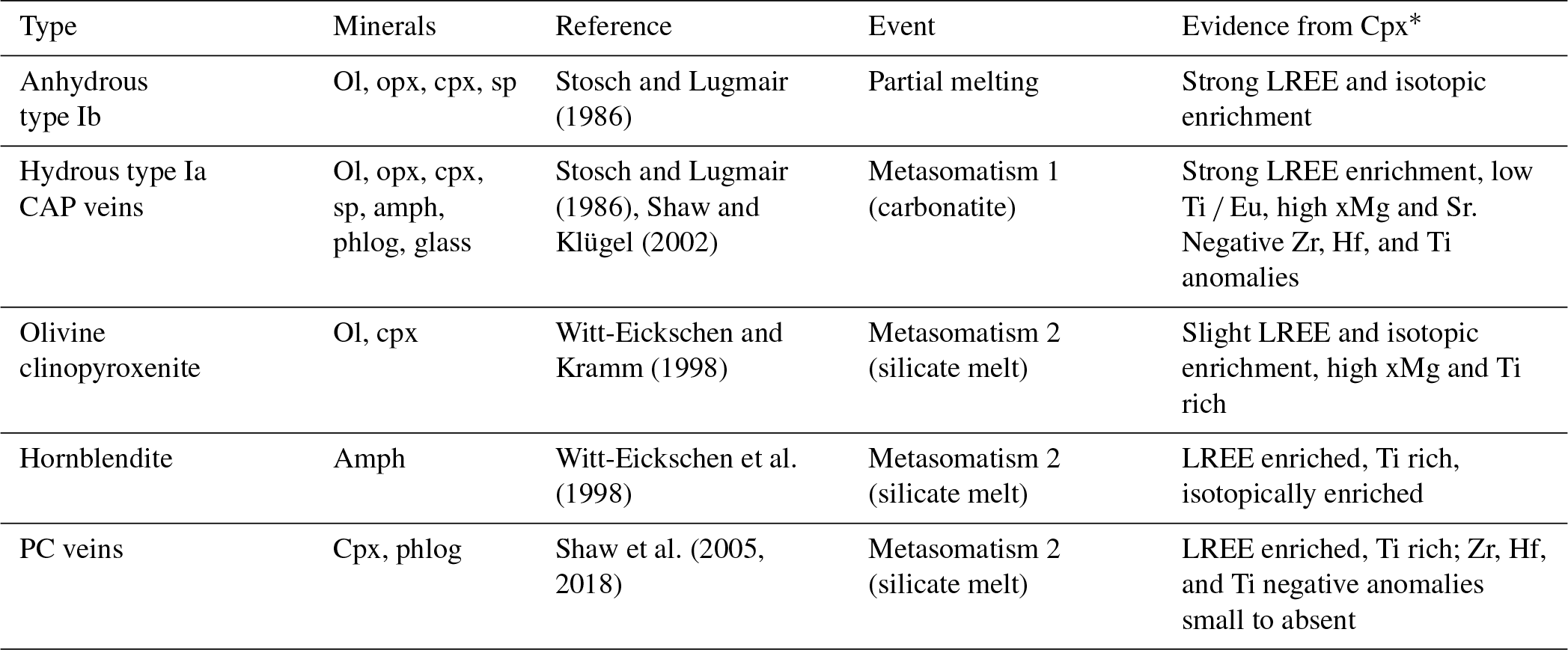

Table 1 Summary of petrography of the Eifel xenoliths (CAP, clinopyroxene–amphibole–phlogopite; PC, phlogopite–clinopyroxene).

^* In the hornblendite veins, the geochemical evidence of the event association is from amphibole rather than clinopyroxene.

4 Analytical methods

The major element compositions of the minerals in sample MFM-V, a composite xenolith with a clinopyroxene–amphibole–phlogopite (CAP) vein in a lherzolite host (Fig. 2a), were determined using the Cameca SX50 electron microprobe at the Bayerisches Geoinstitut, University of Bayreuth. The operating conditions were 15 kV accelerating voltage and 10 nA beam current with 30 s count time on peaks and 15 s on each background. The instrument was standardized with a variety of natural minerals and pure elements. Data reduction was done via the PAP procedure (Pouchou and Pichoir, 1984). Precision is estimated to be approximately 3 % based on repeated analyses of standards. The new samples from Gees, Baarley, Ruderbusch, and Neunkirchen were analyzed using the JEOL 6400 SEM and the EDAX genesis EDS system at the University of New Brunswick. Operating conditions were 15 kV accelerating voltage with a beam current of 5 nA. The instrument was calibrated using repeated analyses of a diopside standard, which gives a precision of ∼ 5 % for all analyzed elements. A full list of major and trace element data for all new samples is presented in Table 1.

Trace element data on all samples were collected using the Australian Scientific Instruments M-50 193 nm excimer laser system coupled to the Agilent 7700x ICP-MS at the University of New Brunswick. On-sample energy, laser-firing rate, and beam size were set to 3 J cm⁻², 3 Hz, and 24–33 µm respectively. Each sample was ablated for 30 s followed by a gas background of 30 s. Samples were bracketed by two standards – NIST610 and NIST620. The data were reduced using Iolite 4 software with the Trace Elements data reduction scheme (Paton et al., 2011). Precision and accuracy are estimated at 5 % based on repeated measurements of NIST610.

Literature data with trace elements were downloaded from the GeoRoc database. The data and sources are listed in Table S1.

5 Petrography

The peridotite xenoliths from the WEVF have been divided into two groups based on mineralogy and mineral compositions (Stosch and Seck, 1980). Amphibole- and phlogopite-free xenoliths are termed type Ib, whereas xenoliths with disseminated hydrous phases are termed type Ia. Both types may contain cross-cutting veins with associated wehrlite reaction zones, e.g., those described by Witt-Eickschen et al. (1998), Shaw et al. (2005), and Shaw et al. (2018) and shown in Fig. 2b. These types are described in more detail below.

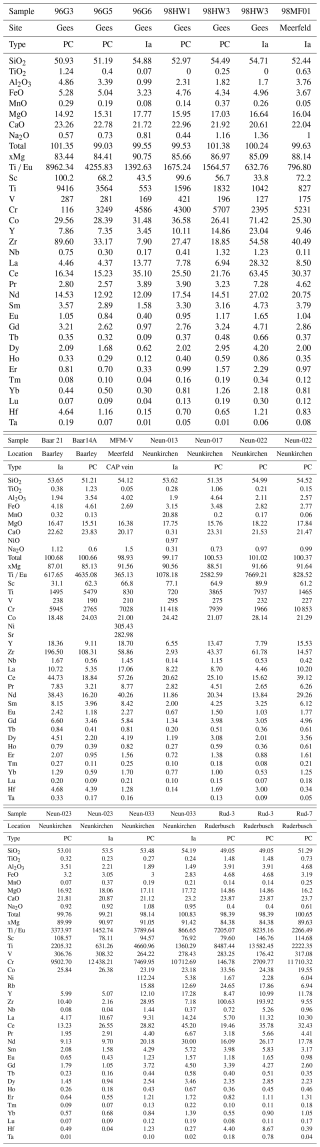

Table 2 Representative compositions of clinopyroxene from this study (PC, phlogopite–clinopyroxenite veins and wehrlite; Ia, type Ia xenoliths; CAP, clinopyroxene–amphibole–phlogopite veins).

5.1 Type 1a (hydrous) xenoliths

These are tabular, recrystallized peridotites with amphibole, or its breakdown products (Shaw and Klügel, 2002), as well as phlogopite (Table 1). They are found at all locations across the West Eifel. They range from phlogopite wehrlite to harzburgite. In harzburgite, orthopyroxene is porphyroclastic and is partly replaced by aggregates of olivine and clinopyroxene (Fig. 2c). Clinopyroxene close to these reaction zones commonly shows a sieve texture (Fig. 2d). The lherzolite and wehrlite xenoliths are relatively poor in orthopyroxene but contain numerous regions in which rounded olivine is intergrown with greenish clinopyroxene, suggesting its former presence. Phlogopite is present in all samples as an interstitial phase often associated with the olivine–clinopyroxene domains but also along grain boundaries of coarse-grained, deformed olivine. Phlogopite commonly has spinel aggregates in its core. Amphibole is absent in all the new samples examined, but it is present in many of the samples described in the literature, particularly those from Meerfelder Maar.

Figure 2 (a) Clinopyroxene–amphibole–phlogopite (CAP) vein from Meerfelder Maar. (b) Veined wehrlite xenolith (SEL1) from Rockeskyllerkopf containing phlogopite–clinopyroxene (PC) veins. (c) Typical orthopyroxene (opx) porphyroclast in a type Ib xenolith from Meerfelder Maar (96-MF-22a) showing partial replacement by olivine and clinopyroxene in a reaction zone (RZ) (plane-polarized light). (d) Sieve-textured clinopyroxene in a type Ib xenolith from Ruderbusch (Rud-7, backscattered electron image).

5.1.1 Clinopyroxene–amphibole–phlogopite (CAP) veins in type Ia xenoliths

Several unusual veins have been found in xenoliths from Meerfelder Maar as represented by sample MFM-V (Fig. 2a). These bright green veins, containing small patches of amphibole, are up to 15 mm wide (Fig. 2b). The host to the vein described here is an amphibole-bearing lherzolite composed of olivine, orthopyroxene, clinopyroxene, and amphibole, with very minor spinel. The grain size of olivine and orthopyroxene is between 2 and 4 mm. Amphibole and clinopyroxene are typically smaller, ranging from 1 to 2 mm. Olivine shows well-developed deformation lamellae. Phlogopite is absent from the host, though it is present in other xenoliths with similar petrographic characteristics.

The CAP vein shows sharp but irregular contacts with the host peridotite (Fig. 2a). It comprises clinopyroxene and amphibole, with lesser amounts of orthopyroxene and olivine and, in a localized domain, phlogopite. Amphibole and clinopyroxene in the vein are typically 2–4 mm in size. Olivine occurs in several small patches; orthopyroxene is more abundant than olivine and forms rafts within the vein that are ∼ 10 mm long. Within these rafts, amphibole occurs as an interstitial phase. Clinopyroxene is the dominant vein mineral. It is intergrown with amphibole and forms domains within the veins.

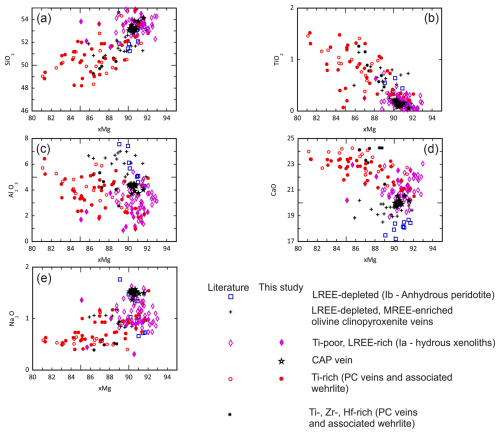

Figure 3 Major element composition of clinopyroxene in the West Eifel mantle xenoliths. Sources of literature data are given in Table S1. (a) xMg vs. SiO₂, (b) xMg vs. TiO₂, (c) xMg vs. Al₂O₃, (d) xMg vs. CaO, (e) xMg vs. Na₂O.

5.1.2 Hornblendite veins in type Ia xenoliths

Witt-Eickschen et al. (1998) described veins of amphibole that range in size from 0.1–1.2 cm in amphibole-bearing lherzolite and harzburgite. These have been reported only from Meerfelder Maar. There is commonly a 0.5–1 cm wide zone of amphibole enrichment at the vein–peridotite host contact.

5.1.3 Phlogopite–clinopyroxene (PC) veins in type Ia peridotite

Phlogopite–clinopyroxenite veins hosted in hydrous lherzolite and harzburgite have been found at Rockekyllerkopf, Baarley, Gees (Shaw et al., 2005, 2018), and Neunkirchen, a previously unstudied locality. The PC veins range in thickness from a few millimetres to more than 1 cm and occur both as through-going veins and as selvedges on xenoliths. The veins and selvedges commonly have marginal zones of wehrlite at the contact with the host. The veins and their host xenoliths have been described in detail by Shaw et al. (2005, 2018), who suggested that they are closely related to the hornblendites that occur at Meerfelder Maar.

5.2 Type Ib (anhydrous) xenoliths

These are rare, except at Dreiser Weiher and Meerfelder Maar (Fig. 1), and the samples discussed here are all from the literature (Table 1). Stosch and Seck (1980) described dunite, lherzolite, harzburgite, and wehrlite xenoliths as belonging to this group. Stosch and Lugmair (1986) described these rocks as coarse/protogranular, with some samples showing partial recrystallization. Xenoliths of this type from Dreiser Weiher host the olivine–clinopyroxenite veins described by Witt-Eickschen and Kramm (1998).

Olivine–clinopyroxenite veins in type Ib xenoliths

Witt-Eickschen and Kramm (1998) described 1–5 cm veins that cross-cut anhydrous peridotite xenoliths at Dreiser Weiher. The veins range from olivine–clinopyroxenite to monomineralic clinopyroxenite. They contain variable amounts of titanium-rich phlogopite. The contact between the veins and host is sharp and is often marked by a wehrlite zone up to 2 cm thick.

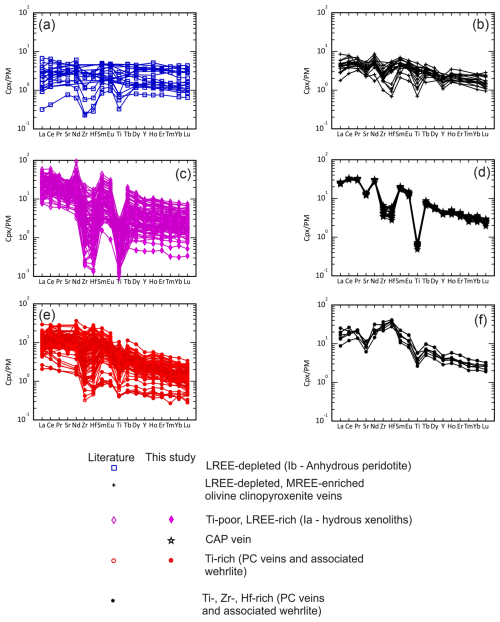

Figure 4 Primitive-mantle-normalized (Sun and McDonough, 1989) multi-element plots of the trace element content of clinopyroxene in the mantle peridotite xenoliths. Sources of literature data are given in Table S1. (a) LREE-depleted clinopyroxene from anhydrous (type Ib) xenoliths. (b) LREE-rich, Ti-poor clinopyroxene in olivine–clinopyroxenite veins in type Ib xenoliths. (c) LREE-rich, Ti-poor clinopyroxene in type Ia xenoliths. (d) LREE-rich, Ti-poor clinopyroxene in a clinopyroxene–amphibole–phlogopite (CAP) vein in a type Ia xenolith. (e) Ti-rich clinopyroxene in type Ia wehrlite xenoliths and in phlogopite–clinopyroxene (PC) veins in type Ia xenoliths with variable negative Zr and Hf anomalies. (f) Ti-rich clinopyroxene in type Ia wehrlite xenoliths and in phlogopite–clinopyroxene (PC) veins in type Ia xenoliths showing positive Zr and Hf anomalies.

6 Mineral chemistry

6.1 Clinopyroxene

Three distinct clinopyroxene types are identified on the basis of xenolith type, mineralogical associations, and composition. Only new analyses made during this study are included in Table 2, and a complete list of all clinopyroxene compositions used is given in Table S1.

6.1.1 LREE-depleted clinopyroxene

LREE-depleted clinopyroxenes are found only in the anhydrous type Ib xenoliths. They are diopside, with xMg (molecular MgO $/$ (MgO + FeO) ×100) ranging between 88 and 91, with most having < 0.2 wt % TiO₂ up to a maximum of 0.64 wt %. Al₂O₃ ranges from 4 wt % to 7.5 wt % and increases slightly with decreasing xMg. Cr₂O₃ is between 1 wt % and 1.7 wt %, and CaO varies between 17 wt % and 19.4 wt %. Na₂O has a positive correlation with Al₂O₃ with a maximum of 1.8 wt % (Fig. 3).

The primitive-mantle-normalized REE patterns of clinopyroxene in the anhydrous xenoliths are flat to LREE-depleted with La_(N) in the range of 0.3–4, and several grains have weak negative Ti, Zr, and Hf anomalies (Fig. 4a). On a Sm $/$ Yb vs. La $/$ Nd plot (Fig. 5), they fall in the LREE-depleted fields, with some showing MREE depletion, but most have slight to moderate MREE enrichment.

6.1.2 LREE-rich, Ti-poor clinopyroxene

This type of clinopyroxene occurs in type Ia xenoliths, in the CAP vein (MFM-V) and in the wall rocks to hornblendite and PC veins. It is diopside, with xMg in the range of 88–93 and low TiO₂ contents. It has a wider range of Al₂O₃ content than the clinopyroxene in the anhydrous xenoliths (1 wt % to 8 wt %). Cr₂O₃ is slightly lower, and CaO is significantly higher than in the LREE-depleted group Ib clinopyroxene (Fig. 3). The primitive-mantle-normalized trace element signatures of this type of clinopyroxene are quite different to those of the clinopyroxene in the anhydrous peridotite xenoliths. There is strong LREE enrichment and variable but strong negative Hf, Zr, and Ti anomalies (Fig. 4b).

The CAP vein, which is hosted in a type Ia xenolith, contains diopside that shows no significant variation in major oxide composition between the vein and the host rock, with average xMg# = 91.0 ± 0.4, TiO₂=0.144 ± 0.04 wt %, and Al₂O₃= 4.11 ± 0.38 wt % (Table 1, Fig. 3). Diopside in the lherzolite host has negative Zr, Hf, and Ti anomalies on a primitive-mantle-normalized multi-element plot and is an LREE-enriched signature with a maximum at Ce and a steep slope down to Lu (Fig. 4d). Diopside from the CAP vein has the same La to Nd chondrite-normalized pattern and abundances as in the host but is slightly enriched in Sm to Lu, though the slope of the REE profiles is similar (Fig. 4c, d). The magnitudes of the negative anomalies for Zr, Hf, and Ti in the clinopyroxene vein are slightly smaller than those in clinopyroxene from the type Ia xenolith host (Fig. 4c, d, Table 1).

6.1.3 LREE-depleted, MREE-enriched clinopyroxene in olivine–clinopyroxenite veins

Diopside in these veins is similar in major element composition to the LREE-depleted clinopyroxene in the anhydrous (Ib) xenoliths but ranges to slightly lower xMg and Cr₂O₃ and higher TiO₂ and CaO (Fig. 3). The clinopyroxene in the host anhydrous xenoliths may show some MREE enrichment. In the veins, this type of clinopyroxene shows a small negative Zr anomaly but no Hf or Ti anomaly, whereas in the host peridotite, this type of clinopyroxene has negative Zr, Hf, and Ti anomalies (Fig. 4b).

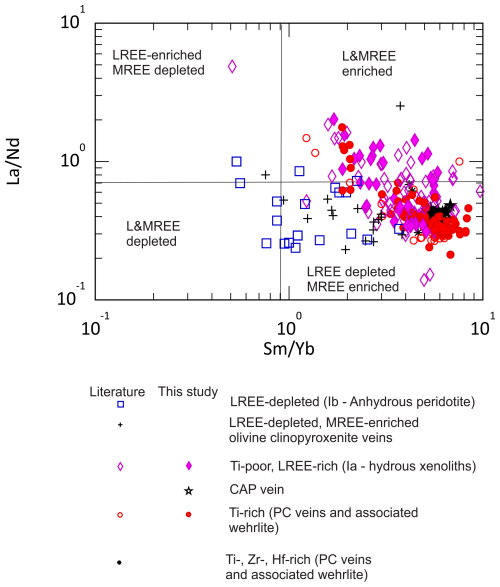

Figure 5 Sm $/$ Yb vs. La $/$ Nd plot (following Downes, 2001), showing the variety of REE patterns in clinopyroxene from the WEVF xenoliths. Sources of literature data are given in Table S1.

6.1.4 Ti-rich clinopyroxene in phlogopite–clinopyroxene veins and wehrlite

This type of clinopyroxene is found in PC veins, wehrlite reaction zones around veins, discrete wehrlite xenoliths, and some unveined hydrous xenoliths. PC veins are absent at DW, whereas at MFM, hornblendite veins are dominated by amphibole with minor clinopyroxene. At the other locations, the veins lack amphibole and comprise variable amounts of clinopyroxene and phlogopite. This clinopyroxene type ranges in xMg from 86.5 to 92. TiO₂ ranges between 0.2 wt % and 1.4 wt %; i.e., it is significantly higher than that in the xenoliths described above. CaO contents are higher for a given xMg than in the hydrous peridotites, and Na₂O contents are generally lower (Fig. 3).

There are two slightly different patterns in the primitive-mantle-normalized multi-element plot. Figure 4e shows the typical pattern, with a maximum at Ce–Pr and LREE contents between that of the anhydrous and hydrous xenolith clinopyroxene. There are very small to no negative Zr, Hf, and Ti anomalies. A small population of grains, at least one analysis from each location, except DW, shows positive rather than negative or no Zr and Hf anomalies. These grains are also richer in CaO compared to the remainder of the phlogopite–clinopyroxene vein/wehrlite–clinopyroxene population.

6.1.5 Within-sample variations

As shown in Tables 2 and S1, each petrographic type of xenolith has a dominant clinopyroxene composition, and in most samples the clinopyroxene is homogeneous (Fig. 6a). There are several samples that show significant variation in clinopyroxene composition. Neun-23 contains two populations of clinopyroxene. The dominant population has strong negative Zr, Hf, and Ti anomalies, whereas the smaller population lacks these anomalies (Fig. 6b). There is no apparent difference in texture between the two populations. Sample 98HW1 also shows the dominant population with strong negative Zr, Hf, and Ti anomalies, but the smaller population is depleted in REE and shows only a small negative Hf and Ti anomaly (Fig. 6c). Sample 98MF1 shows a similar pattern, but in this case the differences in normalized Zr, Hf, and Ti are much smaller (Fig. 6d). Similar heterogeneity in the clinopyroxene populations is seen in xenoliths from Baarley and Neunkirchen.

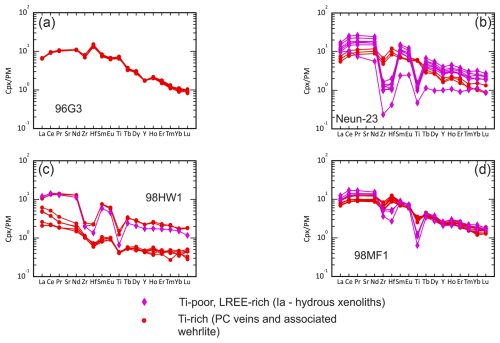

Figure 6 Primitive-mantle-normalized (Sun and McDonough, 1989) plots showing clinopyroxene compositional variation within individual samples. (a) Eight analyses from sample 96G3 showing the homogeneous character of clinopyroxene in a wehrlite xenolith. (b) Nine analyses from sample Neun-23 showing variable LREE and differences in the size of the negative Zr and Hf anomalies in clinopyroxene from wehrlite associated with phlogopite–clinopyroxene veins. (c) Seven analyses showing the variability in Ti-rich clinopyroxene in 98HW1, which has phlogopite–clinopyroxene veins hosted in wehrlite. Note that as Ti content increases, the magnitude of the negative Zr and Hf anomalies decreases. (d) Seven analyses of clinopyroxene in 98MF1 showing the variability in the clinopyroxene trace element signature in type Ia xenoliths affected by some melt infiltration.

6.2 Amphibole

Amphibole in the hydrous (type 1a) xenoliths and in the CAP vein (MFM-V) is pargasite, with xMg from 86 to 91 and TiO₂ less than 1 wt %. Al₂O₃ increases with decreasing xMg. Na₂O ranges between 2.5 wt % and 3.8 wt %, and K₂O is between 0.2 wt % and 1.5 wt % (Table 3, Fig. 7). A primitive-mantle-normalized multi-element plot shows that the pargasite has large negative Zr, Hf, and Ti anomalies, similar to those in the co-existing clinopyroxene (Figs. 4c, 8a).

The hornblendite veins and associated wehrlite from MFM contain Ti-pargasite that has a wider range of xMg from 81 to 90. Al₂O₃ is lower than in amphibole from the hydrous xenoliths, as is Na₂O, and K₂O is higher in the Ti-pargasite from the hornblendite veins (Fig. 7f). The primitive-mantle-normalized multi-element plots of these grains show that they have a weak to absent negative Zr and Hf anomaly and either no Ti anomaly or a slight positive anomaly (Fig. 8c). There is a small population of grains in the hornblendite veins that has small positive Zr and Hf anomalies (Fig. 8d).

Figure 7 Major element composition of amphibole. Sources of literature data are given in Table S1. (a) xMg vs. SiO₂, (b) xMg vs. TiO₂, (c) xMg vs. Al₂O₃, (d) xMg vs. Cr₂O₃, (e) xMg vs. Na₂O, (f) xMg vs. K₂O.

Figure 8 Primitive-mantle-normalized (Sun and McDonough, 1989) multi-element plots of the trace element content of amphibole in the xenoliths. Sources of literature data are given in Table S1. (a) Ti-poor amphibole in hydrous (type Ia) xenoliths. (b) Ti-poor amphibole in the clinopyroxene–amphibole–phlogopite (CAP) veins. (c) Ti-rich amphibole in hornblendite veins and associated wehrlites from Meerfelder Maar. (d) Ti-, Zr-, and Hf-rich amphibole in hornblendite veins and associated wehrlites from Meerfelder Maar.

6.3 Phlogopite

Disseminated phlogopite in the hydrous xenoliths has xMg of 90–93 and < 1 wt % TiO₂. In the phlogopite–clinopyroxene veins and associated wehrlites, the xMg shows a wider range from 80–90, and TiO₂ contents are between 3 wt % and 6 wt % (Fig. 9).

7 Geothermometry

A compilation of the published thermometric data (Fig. 10), determined using the two-pyroxene geothermometer of Brey and Köhler (1990), shows that the anhydrous (Ib) xenoliths have high equilibration temperatures in the range 1100 to 1290 °C, with an approximately normal distribution about the mean at 1160 °C.

Table 3 Representative amphibole compositions from the clinopyroxene–amphibole–phlogopite (CAP) veins.

The hydrous (Ia) unveined peridotites show a lower temperature range with a bimodal distribution with peaks at 960 and 1020 °C. Finally, the hornblendite and olivine–clinopyroxenite veins and associated wehrlites show a bimodal distribution with peaks at 1020 and 1170 °C, with the higher temperature reflecting the crystallization conditions of the olivine–clinopyroxenites.

The equilibration pressure is more difficult to estimate; however, Witt-Eickschen (2007) showed, on the basis of the Ca-in-olivine–clinopyroxene thermobarometer (Brey and Köhler, 1990), that the anhydrous xenoliths equilibrated at depths from 50–80 km, whereas the hydrous xenoliths equilibrated under slightly shallower conditions (30–50 km).

Figure 9 Major element composition of phlogopite. Sources of literature data are given in Table S1. (a) xMg vs. TiO₂, (b) xMg vs. Al₂O₃, (c) xMg vs. Cr₂O₃, (d) xMg vs. BaO, (e) xMg vs. K₂O, (f) xMg vs. Na₂O.

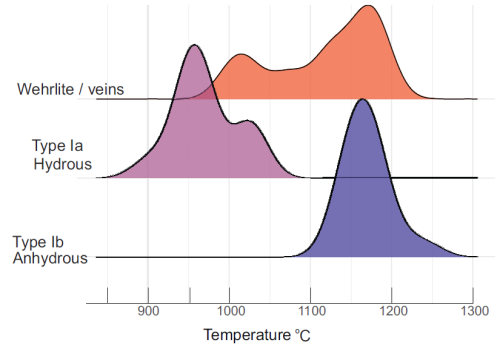

Figure 10 Kernel density plot of geothermometry data for WEVF xenoliths from Kempton et al. (1988), Witt-Eickschen et al. (1993), Witt-Eickschen and Kramm (1998), and Witt-Eickschen et al. (2003).

8 Discussion

The mineral chemical data and textural relations from this and previous studies indicate at least three events in the SCLM below the WEVF.

1. The type Ib LREE-depleted xenoliths with no MREE enrichment also show isotopic depletion (Stosch and Lugmair, 1986), both of which are indicative of partial melting of more fertile mantle. Stosch and Lugmair (1986) suggested that the melting event may have occurred at ∼ 2 Ga.

2. In the type Ia samples and CAP vein, the Ti-poor, LREE-rich clinopyroxene, as well as the Ti-poor amphibole and phlogopite, overprint the ancient depletion. They are interpreted to be related to a mantle metasomatic event, the nature and agent of which are discussed below.

3. Clinopyroxene in olivine–clinopyroxenite veins, showing LREE depletion and MREE enrichment and no Hf and Ti anomalies, has been related by Witt-Eickschen and Kramm (1998) to the passage of primitive alkaline mafic magma that is genetically related to the Quaternary Eifel magmatism. Similarly, the Ti-rich clinopyroxene, amphibole, and phlogopite in the phlogopite–clinopyroxene veins and associated wehrlites have been linked by Witt-Eickschen and Kramm (1998), Shaw et al. (2005), Shaw et al. (2018), and Ma and Shaw (2022) to the passage of, and reaction with, alkaline mafic melts, like those erupted during Quaternary volcanism.

In summary, the melting event is only preserved in high-temperature type Ib xenoliths from DW/MFM. The first metasomatic event is represented by type Ib xenoliths at all locations, though CAP veins have only been found at MFM. The final magmatic metasomatic event is also recorded at all the studied sites, but there are differences in the composition of the melts that produced the veins, with those from Dreiser Weiher and Meerfelder Maar being related to a more sodic magma than those from the other locations (Shaw et al., 2005).

8.1 Identification of metasomatic agents

Blundy and Dalton (2000) recognized that mantle xenoliths rarely preserve direct, unambiguous evidence of the agent of metasomatism and that the nature of the agent must be inferred from trace element signatures and mineral textures. This is particularly problematic when two different agents of metasomatism can result in formation of a similar end product, in this case wehrlite. Lloyd and Bailey (1975) suggested that H₂O–CO₂ supercritical fluids are potential metasomatizing agents in the mantle, and Zindler and Hart (1986) proposed that given the higher solubility of water in mantle melts, the agent was most likely dominated by CO₂. A later study by Schiano et al. (1994) identified both silicate- and carbonate-rich melts as possible agents of mantle metasomatism. Experimental studies on trace element partitioning between carbonatite/silicate melts and clinopyroxene showed that Ti should be depleted in clinopyroxene associated with carbonatite metasomatism relative to clinopyroxene associated with silicate melt metasomatism (Klemme et al., 1995).

Previous studies of peridotite xenoliths from a variety of locations (Yaxley et al., 1991; Dautria et al., 1992; Rudnick et al., 1993; Yaxley et al., 1998; Coltorti et al., 1999) have outlined criteria by which carbonatite metasomatism might be recognized. The most commonly applied criterion for identification of carbonatite-associated metasomatism is the relationship of Ti $/$ Eu and La_N $/$ Yb_N in clinopyroxene developed by Coltorti et al. (1999). Since carbonatites have low Ti and high LREE contents, carbonatite-associated clinopyroxene should have low Ti $/$ Eu and high La_N $/$ Yb_N, whereas clinopyroxene formed from silicate melt should have higher Ti but lower LREE, giving a high Ti $/$ Eu and moderate to low La_N $/$ Yb_N signature. For the WEVF, the nature of the agent of metasomatism that formed the disseminated Ti-poor minerals and the clinopyroxene–amphibole–phlogopite vein is poorly defined. Kempton et al. (1988) and Stosch and Lugmair (1986) suggested that these minerals formed during reaction of depleted mantle with low-density fluids. Thibault et al. (1992) argued that wehrlite xenoliths at Gees formed by reaction between orthopyroxene-bearing peridotite and carbonatite melt, but this was challenged by Zinngrebe and Foley (1995), who showed that the observed major element compositional trends could be produced by reaction with a silicate melt. Witt-Eickschen et al. (2003) also suggested that the Ti-poor minerals in a single sample associated with this event could be related to carbonatite metasomatism but that there is little support from petrography and major element composition of the minerals to support such an origin.

As expected, based on previous studies (Shaw et al., 2005, 2018; Ma and Shaw, 2022), the phlogopite–clinopyroxene veins and associated xenoliths show a typical silicate-melt-related signature, with Ti $/$ Eu > 2000 and La_N $/$ Yb_N < 10 (Fig. 11a). In contrast, the LREE-enriched, Ti-poor clinopyroxene disseminated in the hydrous xenoliths and forming the bulk of the CAP vein has Ti $/$ Eu < 1700 with La_N $/$ Yb_N that ranges from 1 to 45. This group falls well within the field interpreted to be due to carbonatite metasomatism.

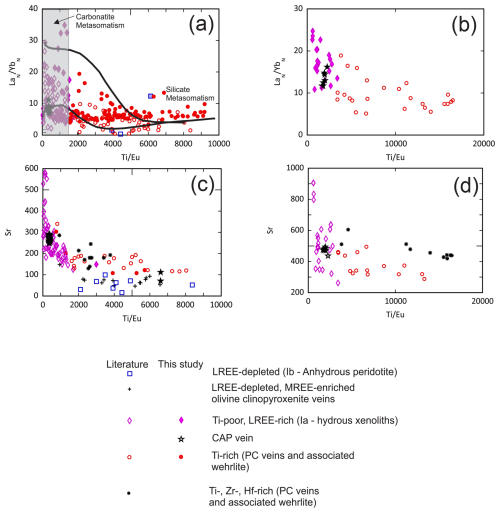

Figure 11 Trace element ratios and interpretation of trace element distributions of clinopyroxene and amphibole. Primitive-mantle normalization factors for La and Yb are from Sun and McDonough (1989). Sources of literature data are given in Table S1. (a) Ti $/$ Eu vs. La_N $/$ Yb_N (normalizing values from Sun and McDonough, 1989) with fields for clinopyroxene associated with silicate melt and carbonatite metasomatism (fields from Coltorti et al., 1999). The solid curves show the diffusion pathways for exchange between the composition of carbonatite-associated clinopyroxene and the composition of clinopyroxene in veins associated with silicate melt metasomatism. These profiles were calculated using the finite-difference MATLAB code from Shaw (2024). We calculated diffusion profiles using the diffusion coefficients of Ti, Eu, La, and Yb from Van Orman et al. (2001), Cherniak and Liang (2007), and Cherniak and Liang (2012). We used two different starting compositions in the models: for the carbonatite-related clinopyroxene, the grain with the highest (La_N $/$ Yb_N) and a grain with average (La_N $/$ Yb_N). For the silicate-melt-related clinopyroxene, we used the grain with the highest Ti $/$ Eu. We calculated a diffusion profile for each element and each mineral pair using a diffusion duration of 100 000 years at 1150 °C. The element ratios were then calculated for each point in the profile and transferred to the plot. (b) Ti $/$ Eu vs. La_N $/$ Yb_N (normalizing values from Sun and McDonough, 1989) for amphibole, showing that disseminated amphibole in type Ia xenoliths and clinopyroxene–amphibole–phlogopite veins, related to carbonatite metasomatism, has low Ti $/$ Eu and high La $/$ Yb compared to those in hornblendite veins and associated wehrlites that are associated with silicate melt metasomatism. The carbonatite-associated amphibole has much lower Ti $/$ Eu and La_N $/$ Yb_N compared to amphibole in the magmatic hornblendite veins.

Amphibole in the melt-metasomatized xenoliths also shows high Ti $/$ Eu and low La_N $/$ Yb_N, whereas that in the CAP veins and type Ia xenoliths has low Ti $/$ Eu and high La_N/Yb_N (Fig. 11b), suggesting that metasomatic amphibole may also be used in the discrimination between silicate and carbonatite metasomatism.

On the basis of the Ti $/$ Eu and La $/$ Yb ratios and the large negative Zr, Hf, and Ti anomalies on the primitive-mantle-normalized trace element plots, we propose that the LREE-rich, Ti-poor clinopyroxene and amphibole in the type Ia/clinopyroxene–amphibole–phlogopite (CAP) veined xenoliths are the result of interaction of depleted mantle, as represented by the type Ib xenoliths, with a carbonatite melt.

8.2 Relation of the carbonatite and silicate melt metasomatism

Although Ti-rich clinopyroxene in hornblendite/phlogopite–clinopyroxene veins and associated wehrlites can be related to metasomatism by magmas similar to those erupted in the West Eifel during the Quaternary, they also show some similarity to the carbonatite-associated clinopyroxene, most notably in the presence of distinct negative anomalies in Zr and Hf (Fig. 4).

Petrographic data from this study and those of Witt-Eickschen et al. (1993), Witt-Eickschen and Kramm (1998), Witt-Eickschen et al. (2003), Shaw et al. (2005), and Shaw et al. (2018) indicate that the silicate metasomatic event overprinted the carbonatite-associated metasomatism. Since Ma and Shaw (2022) used the carbonatite-metasomatized peridotite composition as their starting composition in their models, we can examine the effect of equilibration of previously metasomatized mantle with silica-undersaturated melt. The modelling indicates that at equilibrium, the silicate-metasomatized mantle should show a decrease of ∼ 10 in La_N $/$ Yb_N and an increase of between 3500–6500 in Ti $/$ Eu depending on the peridotite $/$ melt ratio. This explains the extremes of the compositional range in the Ti $/$ Eu vs. La_N $/$ Yb_N plot but not in the region where Ti $/$ Eu is between 1700–3700, which would require extremely small amounts of melt infiltration. An alternative, suggested by Shaw et al. (2018), is that the clinopyroxene in the silicate-metasomatized xenoliths is not fully equilibrated but rather records variable degrees of diffusive mixing of the original carbonatite-associated clinopyroxene and the equilibrium clinopyroxene from the silicate melt. This interpretation is also supported by the heterogeneity of trace element signatures in some samples (Fig. 6). The diffusion coefficients of Ti, Eu, La, and Yb (Van Orman et al., 2001; Cherniak and Liang, 2007; Cherniak and Liang, 2012) vary by up to 2 orders of magnitude such that diffusive mixing would not be linear but rather would describe a curved trend (Fig. 11a); the precise trend would depend on the initial and equilibrium clinopyroxene.

Our results show that the composition and distribution of metasomatic phases in the sub-Eifel mantle are extremely heterogeneous, with individual grains of clinopyroxene preserving evidence of overprinting of two metasomatic events over distances of a few hundred micrometres, in addition to grain-to-grain and xenolith-to-xenolith heterogeneity. Such heterogeneity has also been noted in xenoliths from the Hessian Depression and the French Massif Central (Uenver-Thiele et al., 2017; Puziewicz et al., 2025).

8.3 Regional implications

Volcanism in western and central Europe during the Cenozoic produced a range of mildly to highly alkaline lavas and, in some cases, carbonatites (e.g., Riley et al., 1996; Lustrino and Wilson, 2007; Valentini et al., 2010). The mantle xenoliths brought to surface in these eruptions, from the Massif Central to SW Poland, preserve evidence of multiple metasomatic events (Demény et al., 2004; Galán et al., 2008; Guzmics et al., 2008; Uenver-Thiele et al., 2017; Puziewicz et al., 2025). Similar to the xenoliths from the Eifel, the xenoliths from these sites show variable overprinting of carbonatite-associated metasomatism by silicate melt metasomatism. Although in many cases the silicate-melt-associated metasomatism is interpreted to be related to the volcanism that brought the xenoliths to surface, the origin and timing of the carbonatite metasomatism are enigmatic.

Carbonatite may be generated by near-solidus melting of carbonated peridotite (Pintér et al., 2021) or by formation of an immiscible carbonatite from silica-undersaturated mantle-derived magma (Weidendorfer et al., 2016). We speculate that there may be a link between the carbonatite- and silicate-melt-related metasomatism of the lithospheric mantle and the volcanism that brought the xenoliths to surface. We suggest two possible scenarios. First, early formed carbonatite from near-solidus melting, which would be highly mobile (Hammouda and Laporte, 2000), could ascend and react with SCLM. Further melting in the source could generate a somewhat less mobile silicate melt, which would follow the carbonatite into the SCLM, where further reaction could occur. A second possibility is that the fractionation of carbonated silica-undersaturated magma generated immiscible carbonatite melts in the mantle. In either case, the low-volume, mobile carbonatitic melts would migrate along grain boundaries, creating a mainly pervasive metasomatism, though the vein described here indicates some channelling of melt. The larger volume of silicate melt could have been confined mainly to fractures and their immediate surroundings, creating the observed veining and associated wehrlite reaction margins that are common in the Eifel mantle samples.

9 Conclusions

1. Previous studies have identified LREE-depleted clinopyroxene in anhydrous xenoliths that resulted from partial melting of a more primitive precursor. The depleted peridotite left after melting was the composition on which later metasomatic events were superimposed.

2. Low Ti $/$ Eu, high La_N $/$ Yb_N, and the distinct negative Zr and Hf anomalies of disseminated clinopyroxene in lherzolite, harzburgite, and wehrlite xenoliths provide strong evidence that the sub-Eifel mantle experienced metasomatism by carbonatite melts. Although the metasomatic phases are mainly disseminated, the CAP vein from Meerfelder Maar indicates that there was also focused flow.

3. Silicate melt metasomatism overprinted the carbonatite metasomatism. There is evidence of an early phase of silicate metasomatism that produced olivine–clinopyroxenite veins that contain LREE-depleted, MREE-enriched clinopyroxene. Infiltration of later batches of magma produced Zr- and Hf-rich clinopyroxene that is depleted in LREE compared to the carbonatite-associated clinopyroxene. The variability in clinopyroxene compositions, particularly in the wehrlites produced by melt infiltration, indicates that equilibrium between the carbonatite-metasomatized peridotite host and infiltrating melt was not completely attained.

4. The melting event is only preserved at Dreiser Weiher and Meerfelder Maar, whereas the two metasomatic events are regionally distributed, though there are differences in the composition of the silicate melt related to the second metasomatic event, as noted by Shaw et al. (2005). The mantle below the Eifel is heterogeneous on a hand sample scale but also on a grain-to-grain scale. Analyses of clinopyroxenes in samples from numerous locations show that they preserved complex relations of trace element signatures.
