The M₂(PO₄)₂Φ₈ cyclic tetramer – a flexible structure-building unit – Part 1: Primary pegmatite phosphate minerals

The minerals of the triphylite, alluaudite, zwieselite, and graftonite groups are amongst the most abundant of the primary phosphate minerals in granitic pegmatites. An analysis of the crystal structures of the four groups from the perspective of the connectivity between the metal atom polyhedra and the PO₄ tetrahedra for the individual metal atom sublattices has resulted in the identification of structural motifs that are common to the four primary mineral groups. All four structure types contain 2-polyhedra-wide ribbons formed from corner linking of M₂(PO₄)₂Φ₈ cyclic tetramers, oriented along [001]. The ribbons in the four structure types all have the same topology but correspond to different geometrical isomers due to different orientations of the tetrahedra and different pairs of polyhedral edges involved in the ribbon formation. In the alluaudite, zwieselite, and graftonite group minerals, the polymerised cyclic tetramer (PCT) ribbons are connected along [010] by octahedral edge sharing, giving the same topology of (100) layers, with correspondingly similar b and c unit-cell parameters for the structures of the three mineral groups. The same PCT ribbons are also present in arrojadite–dickinsonite group primary phosphates. The persistent presence of the same type of structural unit across several different mineral groups is related to the high flexility of the cyclic tetramers to adjust to different crystal chemistries by rotation and buckling about the polyhedral corner linkages.

1 Introduction

Using geometrical graph theory, Hawthorne (1983) enumerated the polyhedral clusters of composition M₂(TO₄)₂Φ_n, for the restrictions of no polymerisation of tetrahedra, no edge or face sharing between octahedra and tetrahedra, and no unlinked polyhedra. In total, 14 graphical isomers were obtained, of which 11 had more than one geometrical isomer, giving a total of 38 clusters. Hawthorne was interested in applying the results to phosphate, arsenate, and sulfate minerals containing commonly encountered di- and trivalent cations. He was able to restrict the number of relevant clusters based on the conjecture that a more stable cluster will have the maximum number of anions having their bond-valence requirement satisfied. For $T=\mathrm{5}+$, 6+ and $M=\mathrm{2}+$, 3+, this reduced the number of clusters for consideration to four, which included one isomer of each of the compositions with Φ=6 to 9. Hawthorne noted that each of the four clusters formed the basis for an extended hierarchy of mineral structures, consistent with their high stability. In the case of the cluster M₂(TO₄)₂Φ₇, shown in Fig. 1a, an unpolymerised form occurs in the mineral morinite, Ca₂Na[Al₂(PO₄)₂F₄(OH)(H₂O)₂], and various polymerised forms occur in many minerals including copiapite, minyulite, olmsteadite, hureaulite, phosphoferrite, melonjosephite, and whitmoreite (Hawthorne, 1979).

Figure 1 (a) M₂(TO₄)₂Φ₇ cluster in morinite. (b) Ideal M₂(TO₄)₂Φ₈ cluster with mmm point symmetry. All diagrams were prepared using ATOMS (Dowty, 2004).

Rupture of the corner linkage between the octahedra in M₂(TO₄)₂Φ₇ gives another of the four stable clusters, M₂(TO₄)₂Φ₈, shown in Fig. 1b. The cluster, with a cyclic 4-member ring, is very flexible due to the possibility of rotation about the corner linkages between the octahedra and tetrahedra. Rotation about the octahedral 4-fold axes in Fig. 1b changes the shape of the ring from rectangular to flattened rhomboid, while rotation about the longitudinal and transverse 2-fold axes gives tilting of the tetrahedra relative to the octahedra and buckling of the tetramer. This flexibility allows the cluster to adjust readily to different H-bonding schemes and to interface with a wide range of other structural units. The M₂(TO₄)₂Φ₈ cluster is best known in its linear chain form, where individual clusters join through pairs of corner-connected tetrahedra to give M(TO₄)₂(H₂O)₂, as in the mineral kröhnkite, Na₂[Cu²⁺(SO₄)₂(H₂O)₂] (Hawthorne and Ferguson, 1975). In a series of reviews and updates, Kolitsch, Fleck, and co-workers have classified dozens of natural and synthetic compounds containing kröhnkite chains, with compositions A_nM(TO₄)₂ ⋅ 2H₂O, where A= Ag⁺, Na⁺, K⁺, Rb⁺, Cs⁺, Tl⁺, NH${}_{\mathrm{4}}^{+}$, H⁺ or Ca²⁺ ($n=\mathrm{1},\mathrm{2}$), M= Mg²⁺, Mn²⁺, Fe²⁺, Co²⁺, Ni²⁺, Cu²⁺, Zn²⁺, Cd²⁺ or Al³⁺, Fe³⁺, Sc³⁺, In³⁺, Tl³⁺, and T= P⁵⁺, As⁵⁺ or S⁶⁺, Se⁶⁺, Cr⁶⁺, Mo⁶⁺, W⁶⁺ (Fleck et al., 2002; Fleck and Kolitsch, 2003, Kolitsch and Fleck, 2006). In addition to structures containing single chains, the authors have also described examples containing double chains and sheets. Minerals with composition A₂M²⁺(TO₄)₂ ⋅ 2H₂O, T= P, As and S have recently been formally approved as belonging to the kröhnkite supergroup, composed of the kröhnkite, talmessite, and fairfieldite groups (Hawthorne, 2025). The different groups have different dispositions of adjacent M(TO₄)₂(H₂O)₂ chains and different H bonding between the chains.

2 The M₂(TO₄)₂Φ₈ cluster

Somewhat surprisingly, there does not appear to be a published example of an unpolymerised M₂(TO₄)₂Φ₈ cluster with T= P or As. For T= S, however, there are several minerals, with compositions M²⁺SO₄ ⋅ 4H₂O, M = Co, Zn, Cd, Mg, Mn, Fe, that have structures containing isolated cyclic tetramers, interconnected only by H bonding. The minerals form the rozenite (M= Fe²⁺) group, the structure of which was determined by Baur (1962). The monoclinic structure (P2${}_{\mathrm{1}}/n$; a=5.979, b=13.648, c=7.977 Å, β=90.43°) is illustrated in projection along [100] in Fig. 2.

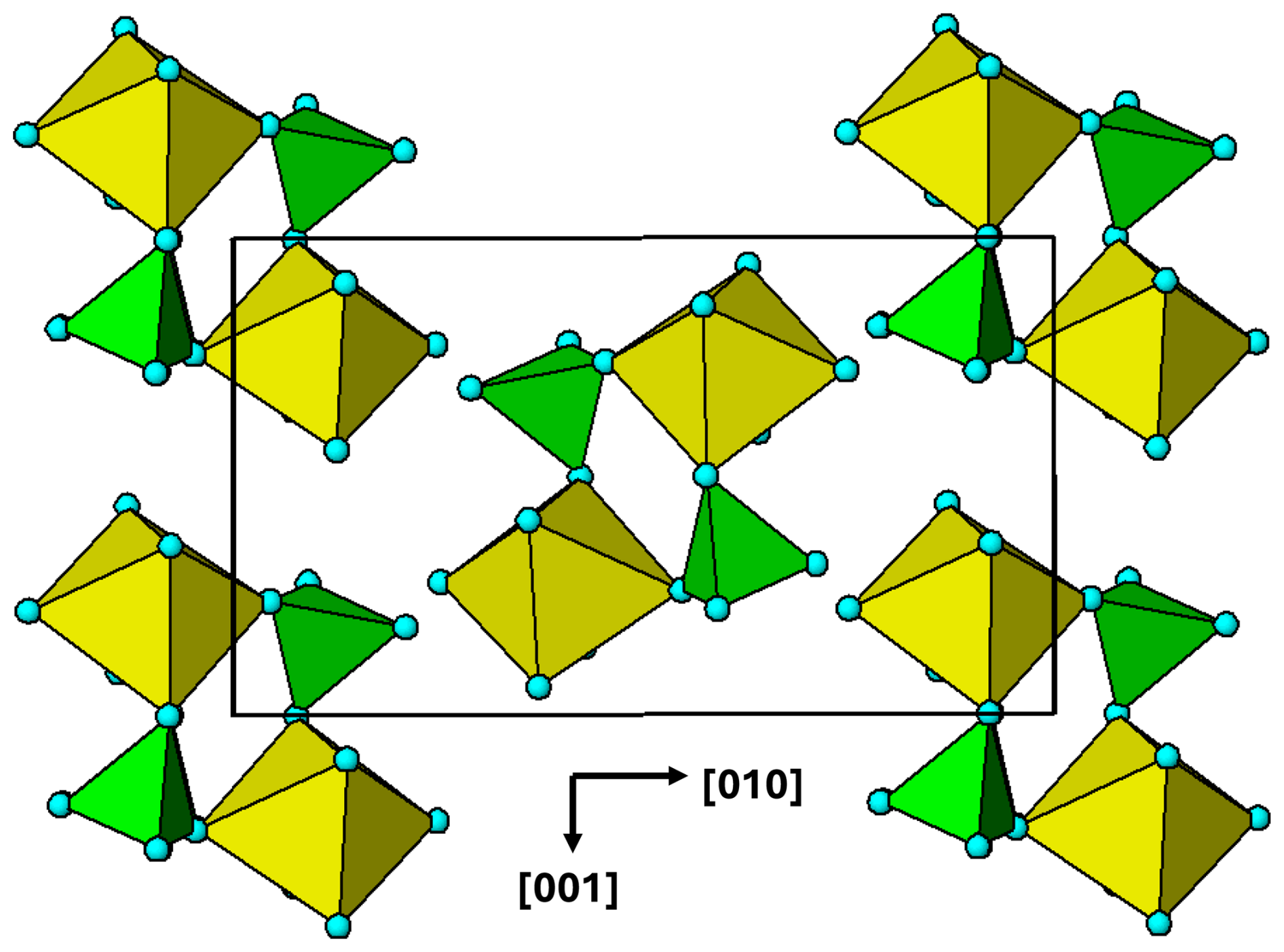

Figure 2 [100] projection of the rozenite crystal structure.

While the topology of the cluster in rozenite is the same as that for the ideal cluster with mmm point symmetry shown in Fig. 1b, the geometry is quite different due to rotations and tilts of the polyhedra to optimise the cluster packing and intercluster H bonding. The H-bonding scheme for rozenite has been reported by Meusburger et al. (2023).

Although the isolated cyclic tetramer is not known in phosphate minerals, the structure of phosphosiderite, Fe³⁺(PO₄) ⋅ 2H₂O, is built from cyclic tetramers sharing corners with eight adjacent clusters (Moore, 1966), as shown in Fig. 3. The octahedra in each cluster share a corner with the tetrahedra of four surrounding clusters, and vice versa, resulting in the elimination of 4 H₂O per cluster.

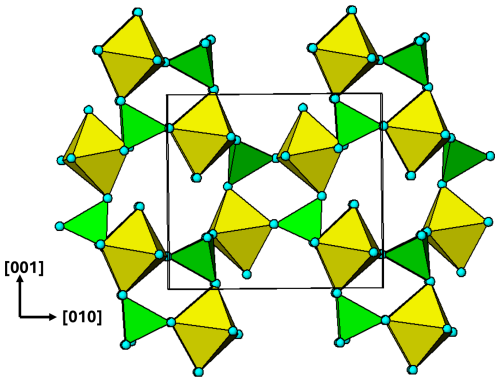

Figure 3 [100] projection of the crystal structure of phosphosiderite.

If the cyclic tetramers corner-share both an octahedron and a tetrahedron with adjacent clusters, a 2-octahedra-wide ribbon is obtained. This ribbon corresponds to a segment of the pinwheel structures of 120° intersecting kröhnkite chains as described by Moore (1973a), illustrated in Fig. 4 for the phosphate mineral example of brianite, Na₂CaMg(PO₄)₂, isostructural with merwinite (Moore and Araki, 1972). This ribbon, or derivatives of it, are found in several primary pegmatite phosphates, including triphylite–lithiophilite, alluaudite group minerals, zwieselite–triphylite, and graftonite–beusite.

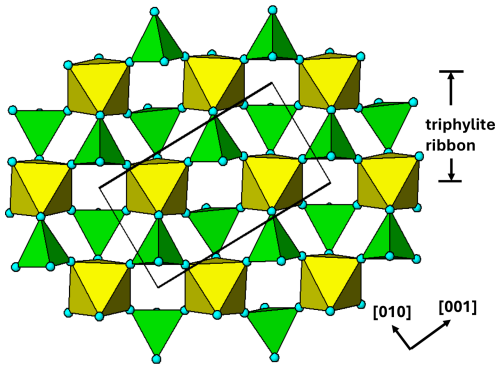

Figure 4 (100) section through the crystal structure of brianite.

In the following sections we review the occurrence of the polymerised cyclic tetramer (PCT) in the above primary phosphate minerals. Of these, triphylite–lithiophilite provides the widest range of hydrothermal and low-temperature secondary phosphate products. In a companion paper (Part 2) we will report on the continuity of PCTs through the alteration sequences of the triphylite–lithiophilite primary phosphates.

3 Extended cyclic tetramers in primary pegmatite phosphate minerals

3.1 Triphylite and other olivine-derivative structures

Moore (1982) has noted that by far the greatest number of metasomatic and secondary pegmatite phosphates derive from the triphylite, LiFe²⁺(PO₄)–lithiophilite, LiMn²⁺(PO₄) series of primary minerals. Members of the solid-solution series have olivine-derived orthorhombic crystal structures, Pbnm, with a∼4.7, b∼10.3, c∼6.0 Å (Losey et al., 2004). High-temperature hydrothermal leaching of lithium, with oxidation of the divalent cations, converts triphylite to heterosite, Fe³⁺PO₄, and lithiophilite to purpurite, Mn³⁺PO₄, which retain the same structure and space group. Lower-temperature alteration products are generally formed from intermediate compositions (ferrisicklerite) that have a mixture of di- and trivalent cations and retain some lithium. The primary mineral sarcopside, Fe${}_{\mathrm{3}}^{\mathrm{2}+}$(PO₄)₂, has a small monoclinic distortion of the triphylite structure (Moore, 1972). It is related to triphylite by the cation exchange reaction Fe${}^{\mathrm{2}+}+\square \leftrightarrow$ 2Li⁺ and results in an alternation of Fe and vacancies at the octahedral sites occupied by Li in triphylite. Sarcopside is often found as an exsolution phase in lamella intergrowth with triphylite (Hatert et al., 2007).

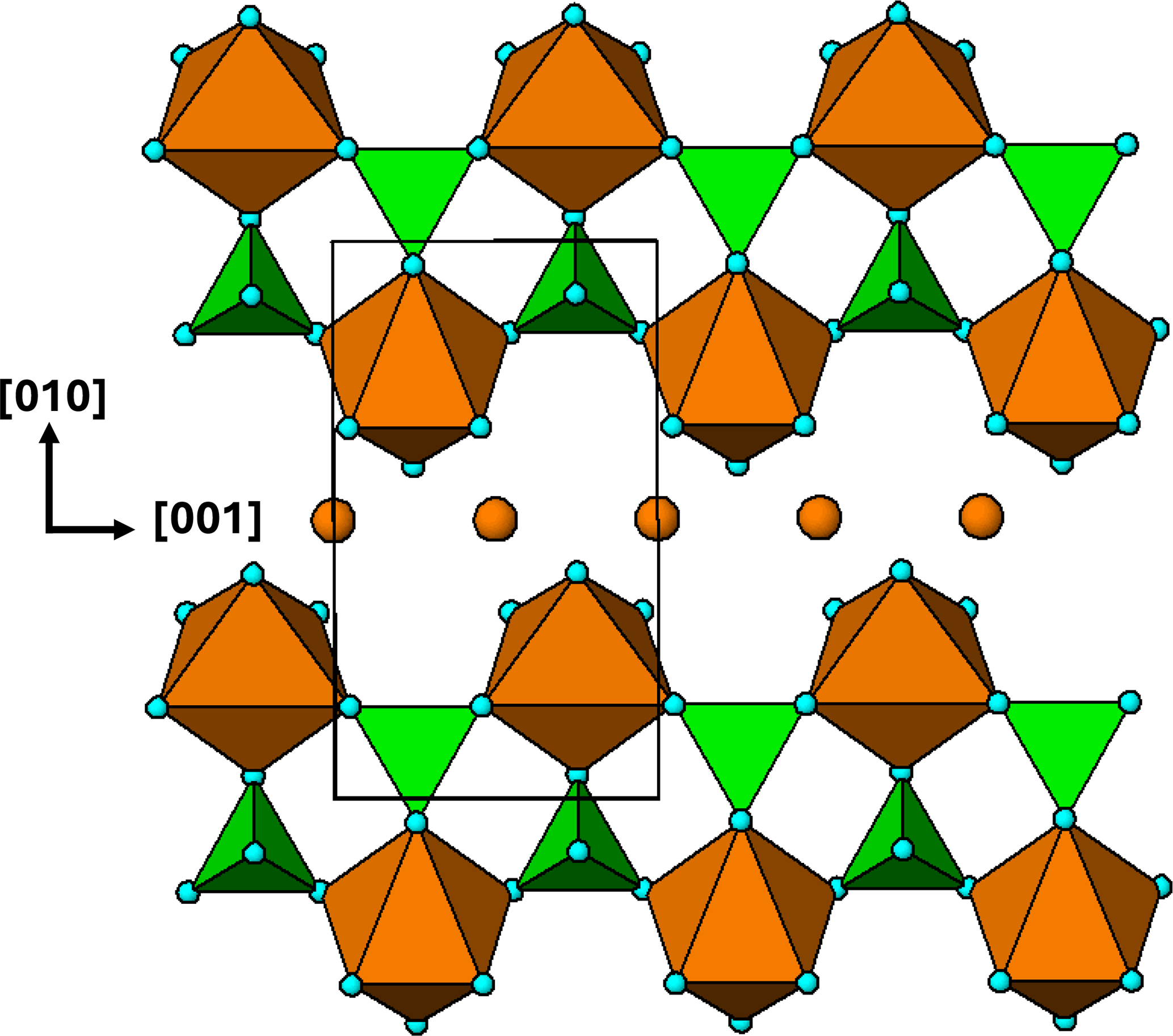

Figure 5 (100) layer of the triphylite–heterosite-sarcopside structure. The brown circles correspond to octahedral sites occupied by Li in triphylite, vacancies in heterosite and alternating Fe²⁺ and vacancies in sarcopside.

A polyhedral representation of a (100) layer of the triphylite/heterosite/sarcopside structure is shown in Fig. 5. Cyclic tetramers are linked into ribbons along [001]. Each Fe-centred octahedron forms tetramers on cis pairs of edges, in contrast to kröhnkite chains, where the tetramers link through trans edges to form linear chains. In each tetramer, the tetrahedra are rotated by 90° about their tetramer edge relative to the ideal tetramer shown in Fig. 1b. This is a constraint imposed by the M and T atoms in triphylite occupying sites in a hexagonal close-packed anion lattice.

3.2 The alluaudite supergroup minerals

The alluaudite supergroup minerals have the simplified structural formula A(2)^′A(1)M(1)M(2)₂(TO₄)₃, where A(2)^′ = Na, K, □; A(1) = Na, Mn, Ca; M(1) = Mn²⁺, Fe²⁺; M(2) = Fe²⁺, Fe³⁺, Mn, Mg, Li; and T= P, As, and monoclinic symmetry, C2$/$c or P2${}_{\mathrm{1}}/n$, with a∼12, b∼12.5, and c∼6.5 Å, β∼115° (Hatert, 2019). Opinion is divided over whether alluaudites are primary minerals or are formed as Na–Li metasomatic alteration products of triphylite–heterosite. Moore (1971) reported alluaudites as fine-grained replacement products from triphylite, lithiophilite, and heterosite at numerous different pegmatite locations, and his observations were supported by other studies, e.g. Huvelin et al. (1972), Roda et al. (1996), and Fransolet et al. (1985). On the other hand, studies by Fransolet et al. (1998, 2004) support the formation of alluaudites as primary minerals, and Hatert et al. (2014) have prepared single-phase alluaudites by hydrothermal synthesis and established their stability field. Alluaudite supergroup minerals undergo high-temperature coupled oxidation/alkali leaching reactions analogous to those in triphylite–heterosite, with Fe${}^{\mathrm{3}+}+\square \leftrightarrow$ Fe${}^{\mathrm{2}+}+$ Na, and the iron oxidation occurs at the M2 site. This has been taken into account in a new nomenclature scheme for the alluaudite supergroup where, for example, the end-member formula for alluaudite is □NaMnFe${}_{\mathrm{2}}^{\mathrm{3}+}$(PO₄)₃, and hagendorfite has a valency-imposed double-site occupancy at M2, giving Na₂Mn(Fe²⁺Fe³⁺)(PO₄)₃ (Hatert, 2019).

The crystal structure of alluaudites is usually described in terms of [10-1] kinked chains of edge-shared M(1)- and M(2)-centred octahedra that are interconnected into (010) layers via corner sharing with PO₄ tetrahedra. The stacking of the layers along [010] results in large channels along [001] that are occupied by the A(1) and A(2)^′ cations. Moore (1971) noted that “the alluaudite structure type is not even remotely related to that of triphylite”. If, however, the substructures associated with the sites M(1) and M(2) are separately considered, then a relationship to the triphylite structure emerges.

Figure 6 (a) (100) layer of M(2)-centred octahedra and PO₄ tetrahedra in alluaudite structure. (b) Cleaving of octahedral edge sharing to illustrate that the layer is composed of 2-octahedra-wide polymerised cyclic tetramers. Orientations of tetrahedra shown by + and −.

Figure 6a shows the M(2)-octahedral substructure. Pairs of octahedra share an edge and the dimers corner-link with PO₄ tetrahedra to form layers parallel to (100). The arrangement can be described as being built from 2-octahedra-wide polyhedral ribbons along [001] that are fused into (100) layers by octahedral edge sharing. The ribbons are shown in Fig. 6b. They have the same topology as the [001] ribbons in triphylite/heterosite shown in Fig. 5. The alluaudite ribbon is a geometrical isomer of the triphylite ribbon where the cis pairs of octahedral edges involved in the tetrameric rings lie in an equatorial plane of the octahedron for alluaudite but in an octahedral face for triphylite. To go from one to the other involves bond breaking and a rotation of the octahedra by ∼ 45°. This results in an expansion of the chain periodicity from c∼6.0 Å in triphylite type to c∼6.5 Å in alluaudite type.

Figure 7 Projection along approximately [001] of the M(1) octahedral substructure in alluaudite, showing (10-1) planes of corner-connected M(1)-centred octahedra and PO₄ tetrahedra. Brown circles are Na atoms.

The M(1) octahedral substructure is shown in projection approximately along [001] in Fig. 7. It comprises kröhnkite-type linear chains along [101], with no connection between adjacent chains. The (10-1) planes of kröhnkite-type chains are almost orthogonal (82°) to the (100) planes containing the M(2) octahedral dimers as shown in the [001] projection of the complete structure in Fig. 8. At the intersections of the chains with the (100) layers, the M(1)-centred and M(2)-centred octahedra both share corners with common PO₄ tetrahedra to form intersecting cyclic tetramers.

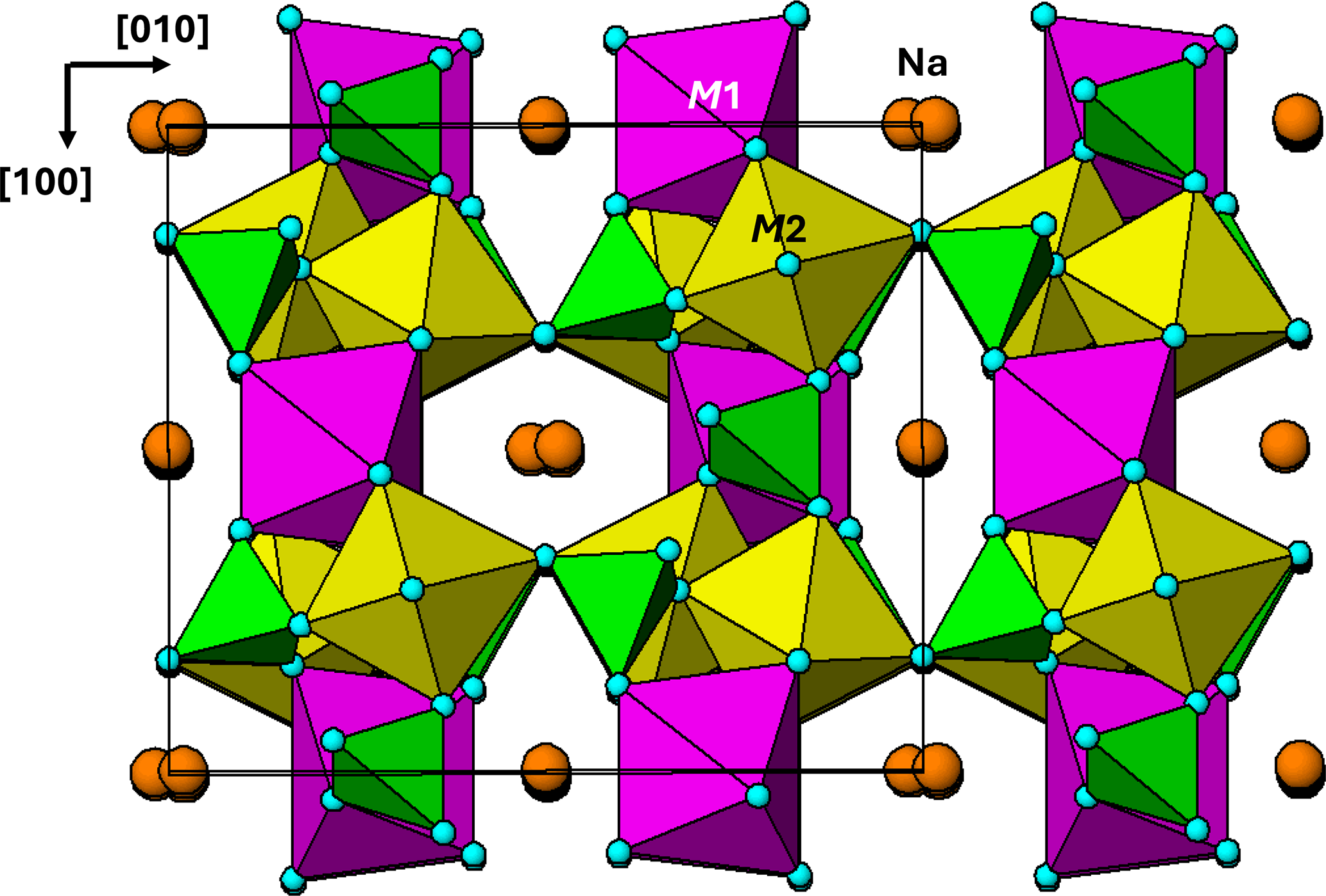

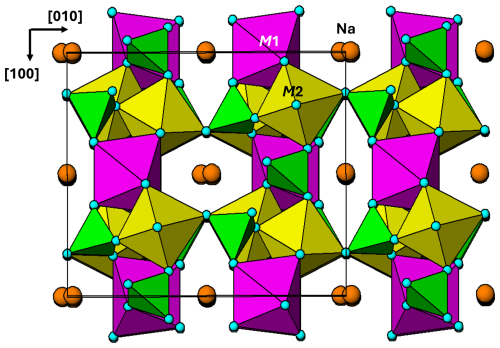

Figure 8 [001] projection of the alluaudite-type structure.

3.3 Zwieselite–triplite minerals

Solid-solution members between zwieselite, Fe${}_{\mathrm{2}}^{\mathrm{2}+}$(PO₄)₂F, and triplite, Mn${}_{\mathrm{2}}^{\mathrm{2}+}$(PO₄)F, occur as late-stage primary phases in numerous granitic pegmatites (Vignola et al., 2014), as well as metasomatic products (Heinrich, 1951; Moore, 1973b, Lottermoser and Lu, 1997)). The solid solutions also incorporate Mg and Ca substitution for the divalent cations and OH substitution for F. The minerals have monoclinic symmetry, $I\mathrm{2}/a$, with a∼12.0, b∼10.0, c∼6.5 Å, and γ∼107°. The structure is built from mutually orthogonal [001] chains of edge-shared M1-centred octahedra and [100] zig-zag chains of edge-shared M2-centred octahedra. The octahedral chains are interconnected into 3D frameworks via corner sharing with PO₄ tetrahedra. Where the two types of interpenetrating octahedral chains intersect, pairs of M1-centred and M2-centred octahedra form approximately tetrahedral clusters by edge sharing. The clusters link into columns along [010] by further octahedral edge sharing, resulting in a dense structure. The density of zwieselite, 4.09 g cm⁻³, is higher than the other primary phosphate minerals considered here, with densities in the range 3.63 to 3.79 g cm⁻³ (Table 1).

Table 1 Crystal chemistry of iron-rich members of the triphylite, alluaudite, zwieselite, and graftonite group primary minerals.

^* (1) Losey et al. (2004); (2) Redhammer et al. (2005); (3) Yakubovich et al. (1978); (4) Tait et al. (2013).

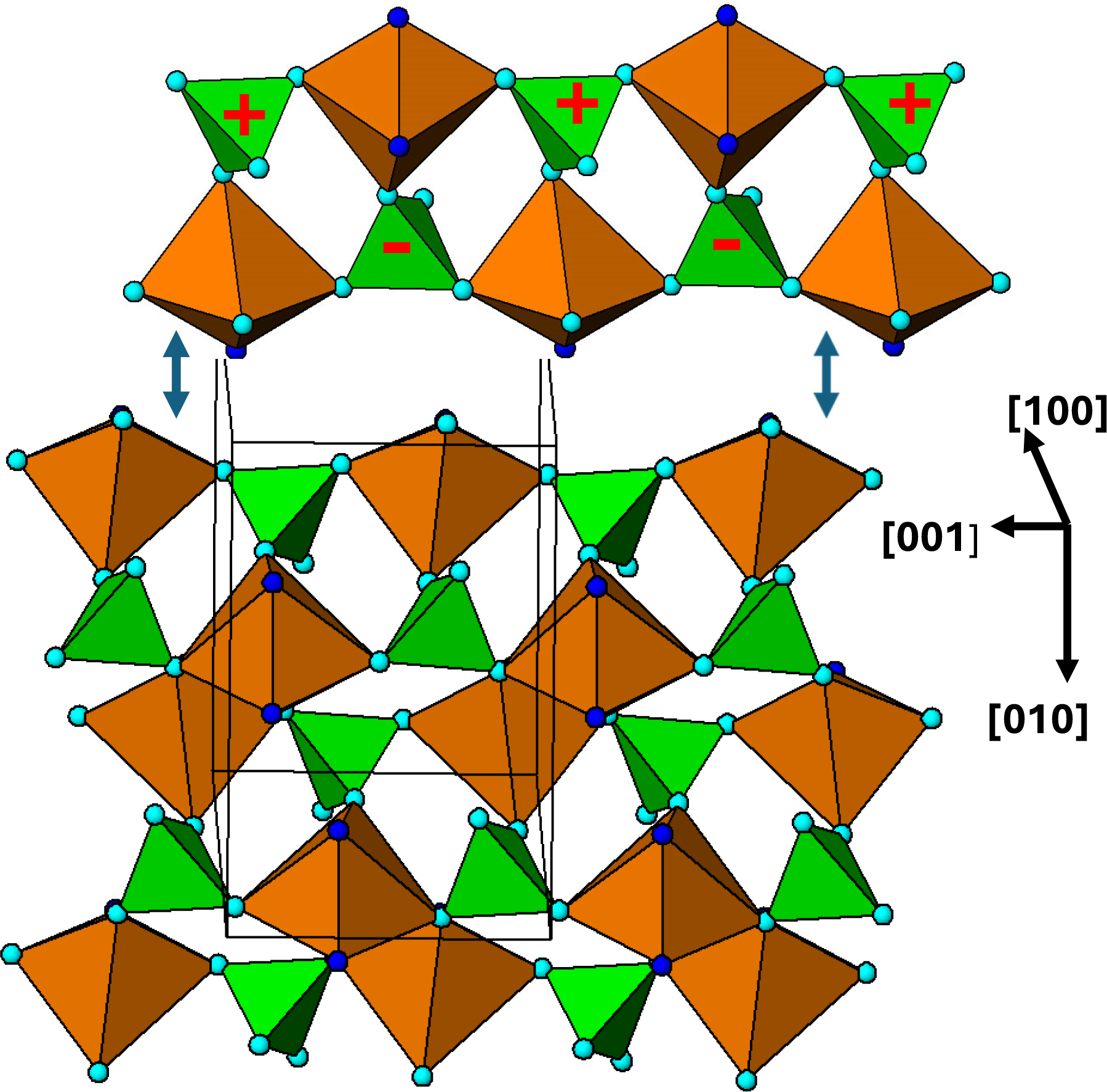

Figure 9 [100] projection of the M2 substructure in the zwieselite structure. A 2-octahedra-wide PCT ribbon is separated in the upper part of the diagram. Orientations of tetrahedra shown by the symbols + and −. The dark-blue circles correspond to F.

As in the case of alluaudite, it is instructive to analyse the two metal atom substructures separately. The M2-centred octahedra and associated tetrahedra are viewed in projection along [100] in Fig. 9, and the corresponding M1-centred octahedra and connecting PO₄ tetrahedra are shown in projection along [001] in Fig. 10. The M2 substructure comprises 2-octahedra-wide PCT ribbons along [001], topologically the same as the [001] ribbons of M(2)-centred octahedra in alluaudite (Fig. 6). The chain periodicity along [001] of 6.5 Å is the same as that for alluaudite. The M2-based [001] ribbons in zwieselite are interconnected along [010] by edge sharing of the octahera, again, analogous to the M(2) octahedral substructure in alluaudite. The shorter b axis of 10 Å in zwieselite relative to 12.5 Å in alluaudite is because the former has corner connection of cis anions on octahedral edges with PO₄ tetrahedra along [010], whereas the latter has corner connection of trans-axial anions of the octahedra with PO₄ tetrahedra.

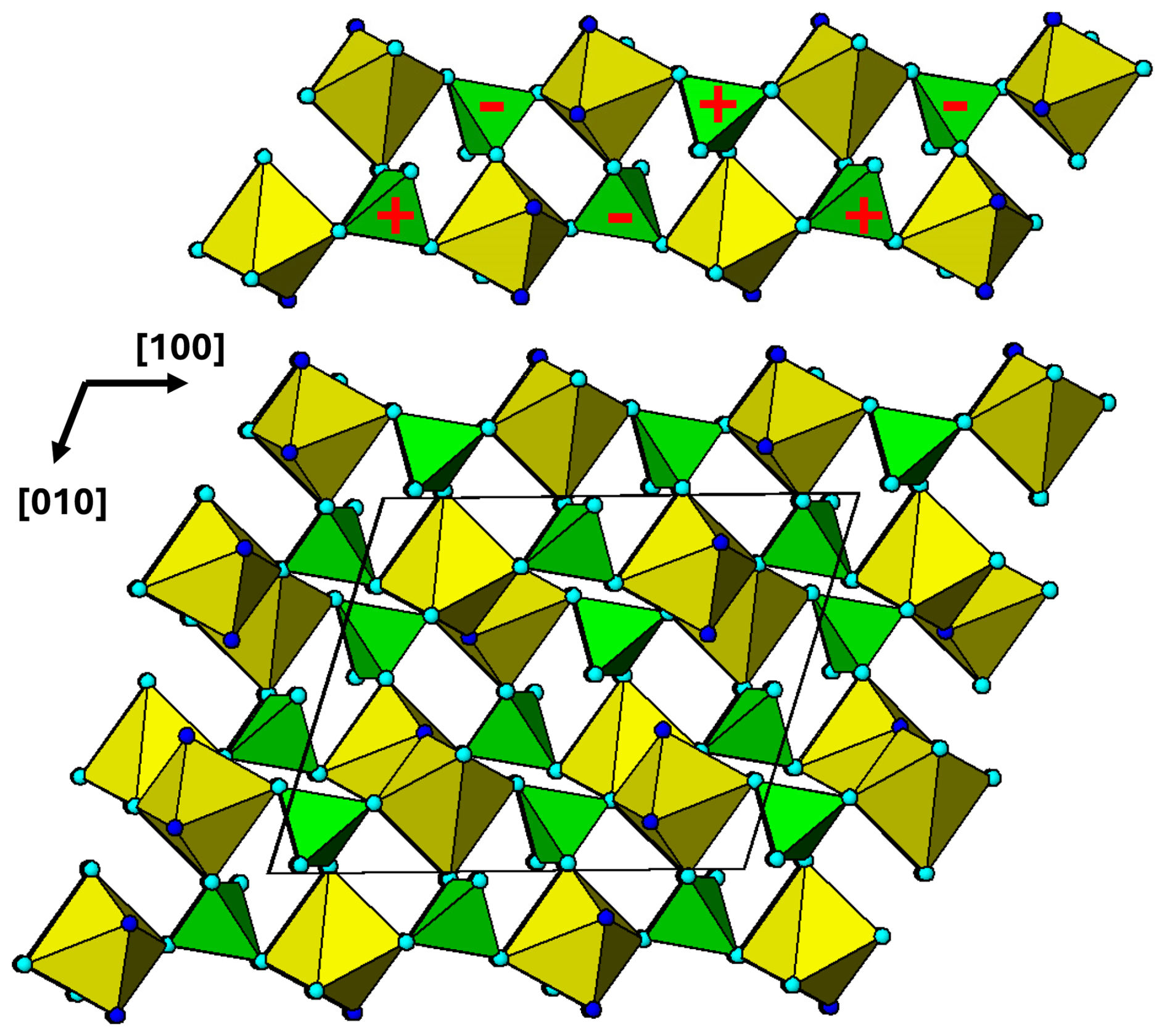

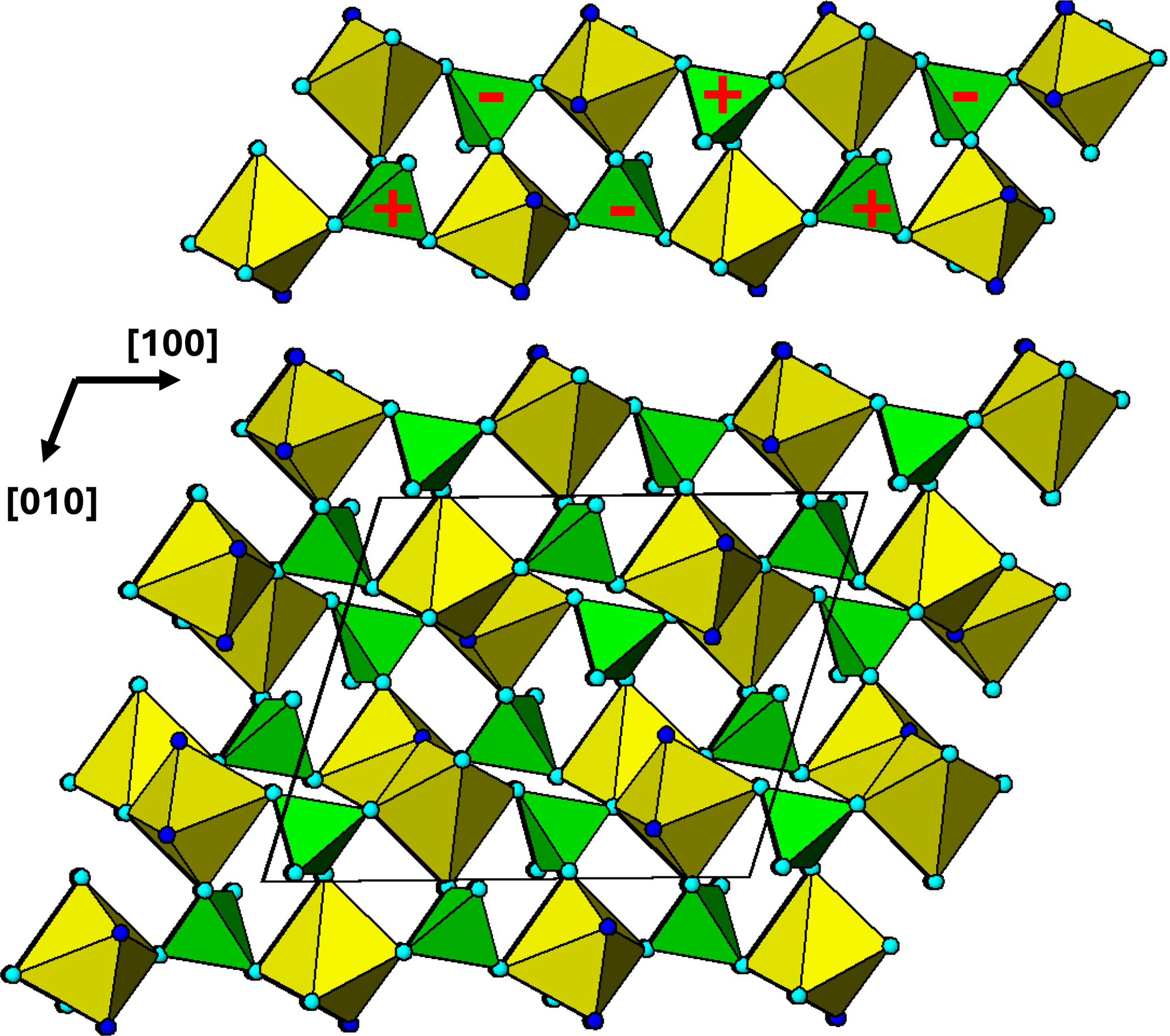

Figure 10 [001] projection of the M1 substructure in zwieselite. A 2-octahedra-wide PCT ribbon along[100] is separated in the upper part of the diagram. Orientations of tetrahedra shown by the symbols + and −. The dark-blue circles correspond to F.

The M1 substructure in zwieselite is also built from PCT ribbons, in this case oriented along [100] as shown in Fig. 10. Although topologically the same as the M2 substructure ribbons, the orientation of the tetrahedra results in a doubling of the chain periodicity to 2 × 6.0 = 12.0 Å. The shorter half-periodicity value of 6.0 Å, compared to the M2-based ribbon periodicity of 6.5 Å, is due to strong tilting of the polyhedra about [010] so that the alternating PO₄ and M1O₄F₂ polyhedra form crankshaft chains along [100] compared to linear chains for PO₄ and M2O₄F₂. In the M1 substructure, successive ribbons interconnect along [010] by edge sharing of the octahedra, as shown in Fig. 10. The M1O₄F₂ polyhedra shown in Fig. 10 are highly distorted with five bonds in the range 2.04 to 2.14 Å and the sixth distance, to a F, much longer at 2.63 Å. The M2 polyhedron is similar in having five bonds at 2.04 to 2.14 Å and a sixth bond, to F, at 2.44 Å (Yakubovich et al., 1978). Both polyhedra are more reasonably described as having 5+1 coordination.

3.4 Graftonite–beusite primary minerals

Graftonite, ideally Fe${}_{\mathrm{3}}^{\mathrm{2}+}$(PO₄)₂, and beusite, ideally Mn${}_{\mathrm{3}}^{\mathrm{2}+}$(PO₄)₂, are end-members of a solid-solution series that also incorporates significant Mg and Ca. The members have monoclinic symmetry, P2${}_{\mathrm{1}}/c$, with a∼8.8, b∼11.5, c∼6.15 Å, β∼99.2° (Tait et al., 2013). The structural formula is M1M2M3(PO₄)₂, where M1 is 7-coordinated, with M1–O bonds in the range 2.2 to 2.8 Å, and M2, M3 are 5-coordinated (Calvo, 1968; Tait et al., 2013). Ca and Mn are preferentially ordered at M1, up to essentially full occupancy by Ca (Wise et al., 1990). M2 = Mn, Mg, Fe and M3 = Mn, Fe (Tait et al., 2013). The crystal structure is generally described as a dense 3D framework of polyhedra with extensive edge and corner sharing between PO₄ tetrahedra and the divalent metal-centred polyhedra. As for alluaudite and zwieselite, we consider the substructures associated with the different metal atoms.

Figure 11 [100] view of the M1 substructure in graftonite. A 2-octahedra-wide PCT ribbon along [001] is separated above the structure. Orientations of tetrahedra shown by the symbols + and −.

The M1 substructure with associated PO₄ tetrahedra is in the form of (100) layers at x=0, 1. A view normal to the layer is shown in Fig. 11. In this diagram the M1 polyhedron is shown as a distorted octahedron, by considering the six shortest M1–O bonds, in the range 2.2 to 2.5 Å. 2-octahedra-wide PCT ribbons are oriented along [001] and are interconnected along [010] by edge sharing of the M1-centred polyhedra.

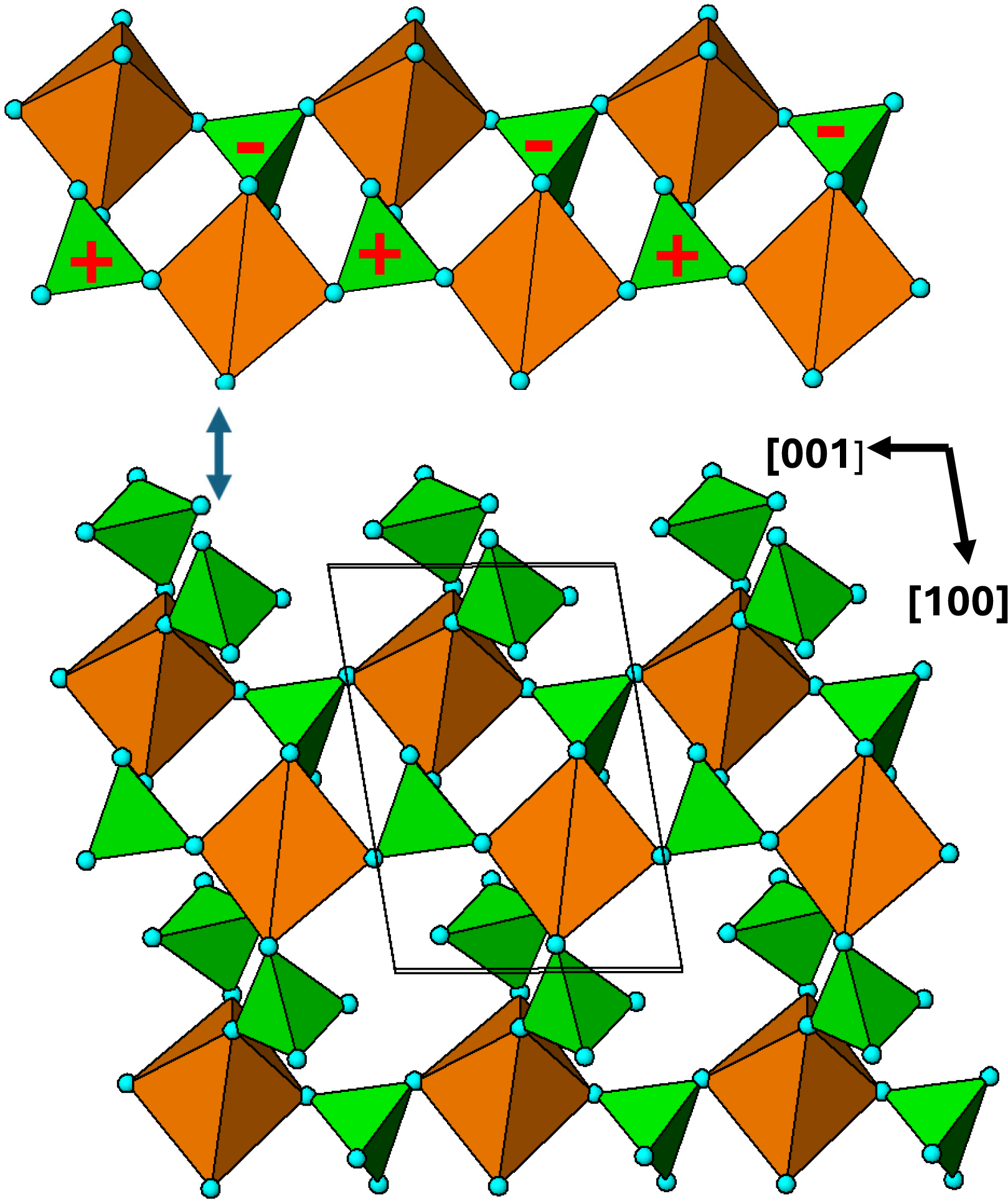

Figure 12 [010] view of the M2 substructure in graftonite. A 2-octahedra-wide PCT ribbon along [001] is separated above the structure. Orientations of tetrahedra shown by the symbols + and −.

The M2 substructure forms heteropolyhedral (010) planes at y=0 and $\mathrm{1}/\mathrm{2}$. A representation of the layer at y=0 is shown in Fig. 12. As for the M1 substructure, it comprises 2-octahedra-wide PCT ribbons along [001]. The ribbons are interconnected along [100] via pairs of PO₄ tetrahedra that link into cyclic tetramers by corner sharing with the octahedra in adjacent [001] ribbons. A comparison of the [001] ribbons in Fig. 9 (M2 in zwieselite) with those for graftonite in Fig. 12 shows that they have identical topologies as well as the same geometry of tetrahedral orientations.

Figure 13 [100] view of the M3 substructure layer in graftonite at $x=\mathrm{1}/\mathrm{2}$. One cyclic tetramer is outlined with the red ellipse.

The M3 substructure forms heteropolyhedral (100) layers, located halfway between the M1 substructure layers. The M3 layer at $x=\mathrm{1}/\mathrm{2}$ is shown in Fig. 13. The M3-centred polyhedra share edges to form chains along [001]. The chains are interconnected along [010] by pairs of PO₄ tetrahedra that form cyclic tetramers with the M3O₅ polyhedra. Each cyclic tetramer is connected to four other clusters by edge sharing of the polyhedra.

4 Discussion

The four mineral groups chosen for study, triphylite, alluaudite, zwieselite, and graftonite, are amongst the most abundant primary Fe–Mn phosphate minerals in granitic pegmatites. The crystal chemistry of each of the four groups has been discussed in detail by Losey et al. (2004) (triphylite–lithiophilite), Moore (1971), Hatert (2008, 2019), Tait et al. (2021) (alluaudites), Heinrich (1951), Roda-Robles et al. (2014), Vignola et al. (2014) (zwieselite–triplite), Tait et al. (2013), and Hawthorne and Pieczka (2018) (graftonite–beusite).

The focus in this study of considering the connectivity between the metal atom polyhedra and the PO₄ tetrahedra for the individual metal atom sublattices has resulted in the identification of structural motifs that are common to the four primary mineral groups studied. The crystal chemistry comparisons of the four mineral groups from this perspective are summarised in Table 1. All four structure types contain 2-polyhedra-wide ribbons formed from corner linking of M₂(PO₄)₂Φ₈ cyclic tetramers. The PCT ribbons in the four structure types all have the same topology, whereby each polyhedron participates in two cyclic tetramers, involving cis pairs of octahedral edges in forming the rings. Each polyhedron shares corners with three PO₄ tetrahedra, and each tetrahedron in turn shares three corners with polyhedra in the ribbon, thus retaining the M $/$ P atomic ratio of 1 as in the isolated cluster.

Several different geometrical isomers of the ribbon topology have been identified. These are mainly due to different orientations of the tetrahedra in the ribbons, labelled + and – in the figures, depending on the location of the apical anion of the tetrahedra, pointing up or down relative to the ribbon plane. The M2 ribbons in zwieselite and graftonite have the same tetrahedral orientation sequence $+-+-$ as in triphylite, whereas the M2 ribbons in alluaudite and the M1 ribbons in graftonite have all tetrahedra in the ribbons oriented the same way. The M1 ribbon in zwieselite has the sequence $++--++--$, with a corresponding doubling of the ribbon periodicity to 12 Å. Different geometrical isomers of the ribbon topology also result from different cis pairs of polyhedral edges involved in the ribbon formation, with the pairs of edges belonging to an octahedral face in triphylite and for M1 in graftonite (O–O–O angle ∼60°) but to an equatorial plane of the octahedron in alluaudite and zwieselite and for M2 in graftonite (O–O–O angle ∼90°).

Figure 14 Heteropolyhedral corner linkages along [010] in (a) zwieselite, M2 polyhedra; (b) graftonite, M1 polyhedra; and (c) alluaudite, M2 polyhedra.

Figure 15 (010) heteropolyhedral layer at $y=\mathrm{1}/\mathrm{4}$ in the arrojadite-type structure. The red lines delineate a [101] 2-octahedra-wide PCT ribbon.

The M2 PCT ribbons in alluaudite and in zwieselite and the M1 PCT ribbons in graftonite are all interconnected via edge sharing of the polyhedra along [010], giving the same topology of the (100) layers, which thus have related b and c cell parameters. The shorter c parameter for graftonite of 6.1 Å compared to 6.5 Å for the other two is due to the different cis pairs of polyhedral edges involved in the ribbon formation as described above. The relatively large difference in b for zwieselite, 9.9 Å compared with 11.6 and 12.6 Å for the other two minerals, is due to the different modes of linkage of adjacent ribbons. The tetrahedra in adjacent ribbons connect via trans anions of the M polyhedra in alluaudite and graftonite but via cis anions (polyhedral edge) in zwieselite. This is illustrated in Fig. 14. The 1 Å difference in b between alluaudite and graftonite is due to different degrees of buckling of the heteropolyhedral linkages as shown in Fig. 14.

Although the study was restricted to the four primary mineral structure types, the same polymerised tetrameric clusters are also present in related primary phosphate minerals; for example the structures of the triploidite–wolfite series minerals (Waldrop, 1970) have the same clusters as the zwieselite–triplite series described here, and the wyllieite group of primary minerals (Moore and Molin-Case, 1974) has the same clusters as in alluaudites.

A preliminary examination has been made of the large, complex structure adopted by the arrojadite–dickinsonite group of primary minerals, A₂B₂CaNa_2+xM₁₃Al(PO₄)₁₁(PO₃OH_1−x)[F,(OH)]₂ (Krutik et al., 1979; Tomes et al., 2018; de Wit and Mills, 2022). They have monoclinic symmetry, Cc, with a∼16.5, b∼10.0, c∼24.5 Å, and β∼106°. A plot of the (010) heteropolyhedral layer at $y=\mathrm{1}/\mathrm{4}$ in Fig. 15 shows PCT ribbons along [101]. Adjacent ribbons are interconnected by both corner and edge sharing of the M-centred octahedra. Further studies of structures of the granitic pegmatite primary and high-temperature hydrothermally derived phosphate minerals using the focus of PCT cluster formation could be fruitful.
